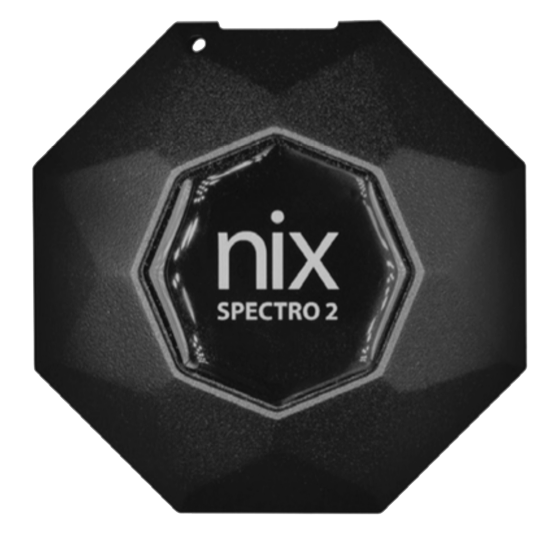

Portable spectrophotometer in a robust metal enclosure, with temperature compensation and a shock-resistant case. Works with the Color, Substrate, Print and Instrument Inspectors in CC Capture.
Hardware is not sold in the online store. Add products to your inquiry list and we will send you a quote by e-mail.
NIX Spectro 2 with CC Capture works with

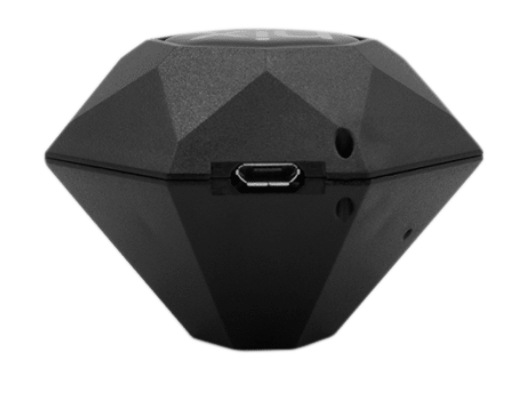

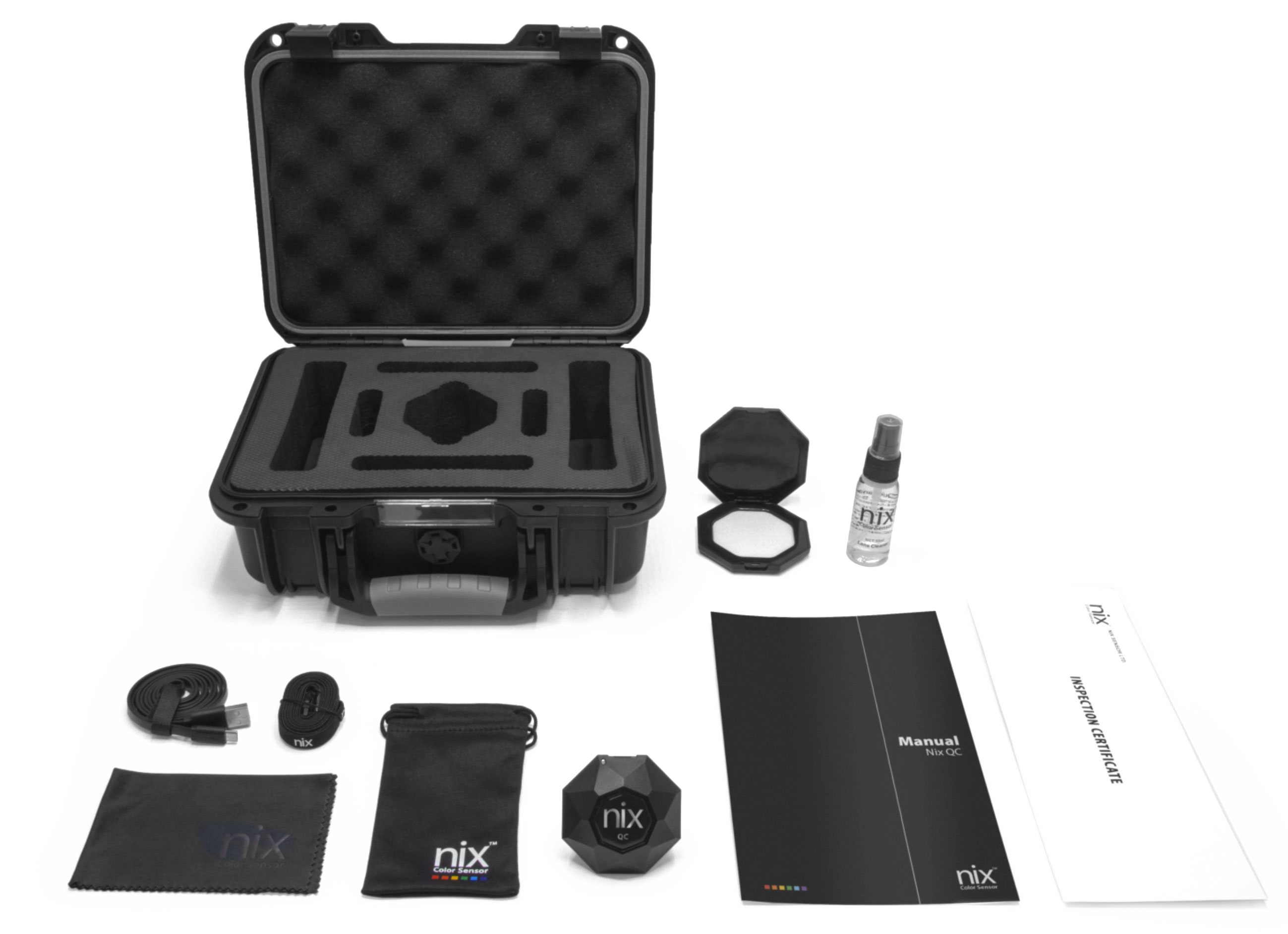

NIX has a robust metal enclosure. Glass lens protects the instrument from dust. Temperature compensation makes it usable in most environments, not only in the laboratory... The instrument comes with a shock-resistant protective case. Additional adapters are available as an option. No longer does the spectrophotometer have to stay crisp, clean, and stationary. The Nix Spectro 2 includes an automotive-grade black powder coating and no moving parts. Meaning it’s dust, water, and scratch-resistant exterior allows you to move out of the lab and into real life.
Please note: This offering is limited to the US market only.
| Parameter | Value |
| Repeatability (Short Term)* | 0.05 ΔE00 on white |
| Inter-Instrument Agreement** | 0.35 ΔE00 average, 1.0 ΔE00 max |
| Optical Geometry | 45º/0º ring illumination optics |
| Aperture | 2 or 5 mm diameter (different instruments) |
| Spectral Range | 400 - 700 nm |
| Spectral Interval | 10 nm |
| Light Source | High CRI, broad-spectrum LED light source (White, Violet, and UV) |
| Illumination spot size | 10 mm+ (0.39”) diameter |
| Measurement Conditions (ISO 13655:2017) | M0 – UV included – ISO 13655:2017, M1 – D50 – ISO 13655:2017, M2 – UV excluded – ISO 13655:2017 |
| Sensor | Diffraction grating with 288-pixel diode array |
| Measurement speed | 1 reported scan/second |
| Connectivity | USB Cable, BT*** 4.0 |
| CC Capture support | Windows 10 • Apple Mac |
| Dimensions | 45mm X 60mm X 60mm (1.77” X 2.36” X 2.36”) |
| Weight | 110g (3.9oz) (Accessories not included in weight) |
| Materials | Durable, matte black powder-coated aluminum enclosure |
| Haptics | Vibration feedback, RGB feedback |
* D65, 10°, to mean of 10 measurements every 3 s on white, at a temperature of 23ºC
** deviation from Nix Sensor Ltd. standard unit at a temperature of 23ºC on 12 BCRA tiles (D65, 10º)
*** coming soon
 |
 |
|
| Nix QC Flat Adapter | Nix QC Liquid & Powder Adapters | |

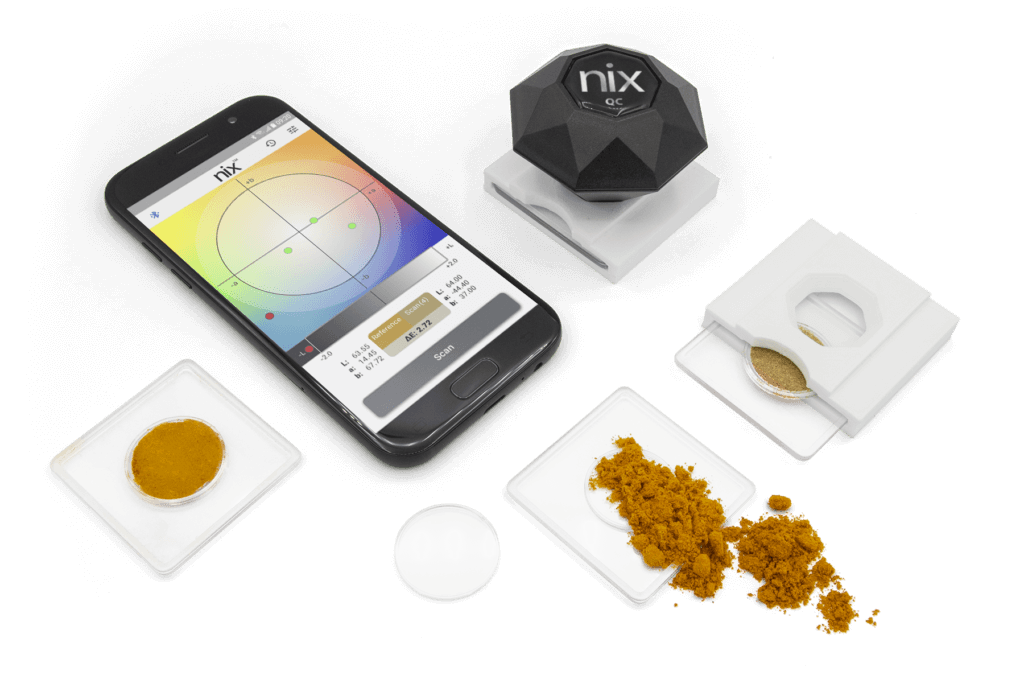

Liquids and powders are typically challenging to measure accurately without a specialized container. Our Liquid and Powder Adapter systems allow for easy measurement of all liquids and powders, using standardized slides or cuvettes. These adapters ensure a flat, uniform measurement interface, meaning you can be certain all measurements are highly precise and repeatable.
|

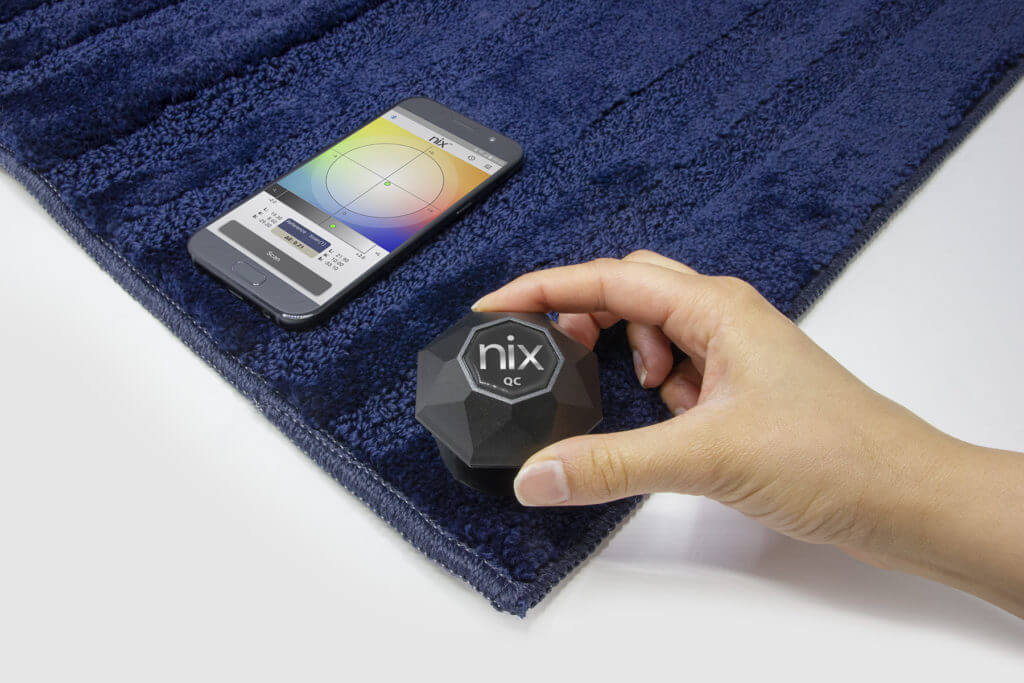

Surfaces that are uneven, textured, plush, or soft can often be difficult to measure accurately. When the scanned surface has areas that are raised or lowered, light from the device will reflect at different points, and the values received will be swayed and inaccurate. To avoid poor scanning conditions such as those, the Flat Adapter can be attached to the bottom of the Nix QC. This creates a uniform surface scan with consistent and accurate results. Use case examples
Please note: With the Flat Adapter attached, you may see L-values that are lower than those seen without the Flat Adapter due to light geometry. If you are using a Flat Adapter to measure your products, it is important to remember to set the master color while using a Flat Adapter as well. This way, you are comparing apples to apples. |
